TR8 Trapezoidal Lead Screws: The Cost-Effective Choice for Reliable Linear Motion

In precision machinery and automation systems, the demand for simple, economical, and durable linear motion solutions continues to grow. From 3D printers and small CNC machines to industrial automation equipment, lead screws remain a trusted fundamental component. Among them, the TR8 trapezoidal lead screw stands out as one of the most widely used options, thanks to its straightforward design, customizable specifications, and consistent performance.

At Shuntai, we specialize in manufacturing high-quality custom TR8 trapezoidal lead screws and matching nuts, with common pitch options of 1mm, 2mm, and 4mm. These products are engineered to reliably convert rotary motion into linear movement, making them a practical solution for medium-to-low load applications that balance durability and cost efficiency.

Why TR8 Trapezoidal Lead Screws Remain the Preferred Choice for Many Applications

The working principle of trapezoidal lead screws is simple and intuitive: the trapezoidal thread profile of the screw pairs with a matching nut to transform rotational force into smooth, controlled linear motion. Unlike ball screws that rely on recirculating bearings for transmission, trapezoidal lead screws operate through direct sliding contact between the screw and nut. While this introduces some friction, it also offers unique advantages for specific use cases.

Shuntai’s custom TR8 lead screws are designed to deliver these key benefits:

• Durable Material Construction: Manufactured from premium materials including GCr15 bearing steel, carbon steel, and bronze, these lead screws resist wear and deformation from repeated use, ensuring a long service life.

• • Flexible Pitch Options: Choose from 1mm, 2mm, or 4mm pitch specifications to meet the varying speed and positioning precision requirements of different applications.
• • Cost-Effective Solution: Compared to ball screws, trapezoidal lead screws feature a simpler manufacturing process, significantly reducing application costs without compromising core functionality.

• • Low-Maintenance Stable Operation: In low-speed, continuous-use scenarios, paired with compatible nut materials and proper lubrication, these lead screws deliver long-term stable performance with minimal maintenance costs.
• For applications that do not require ultra-high precision or extreme speed, and instead prioritize simplicity, low maintenance, and budget efficiency, the TR8 trapezoidal lead screw is an ideal choice that balances practicality and economy.
• Shuntai: Your Trusted Partner for Industrial Transmission Components

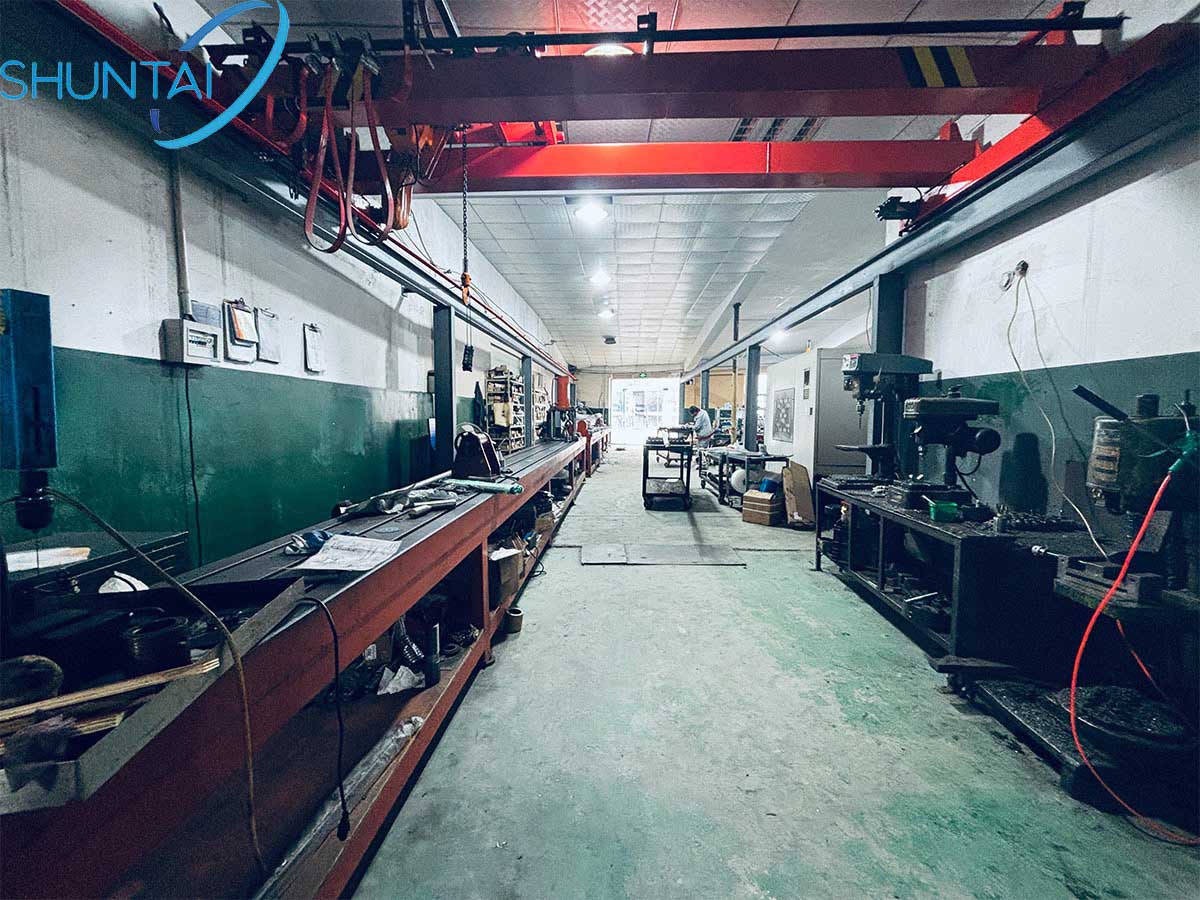

• Shuntai has been deeply involved in the manufacturing of precision mechanical components, with a consistent focus on quality and innovation. Supported by rigorous production standards and an automated manufacturing system, we ensure the reliable quality of our products. We uphold the philosophy of “building the brand with quality, leading the industry with innovation,” embodying craftsmanship and a commitment to excellence.
• Thanks to our stable and reliable product quality, Shuntai has established long-term cooperative relationships with numerous universities and enterprises in China, including Peking University, Harbin Institute of Technology, Central South University, Southwest University, Nanjing University of Posts and Telecommunications, as well as well-known enterprises such as Huawei, China Eastern Airlines, Harbin Bearing Group, Taiyuan Heavy Machinery Group, and Zhongyi Group. We also maintain stable partnerships with foreign companies including Iveco Valves and Cybertron New Energy.
•
• • Core Advantages of Choosing Shuntai Lead Screws

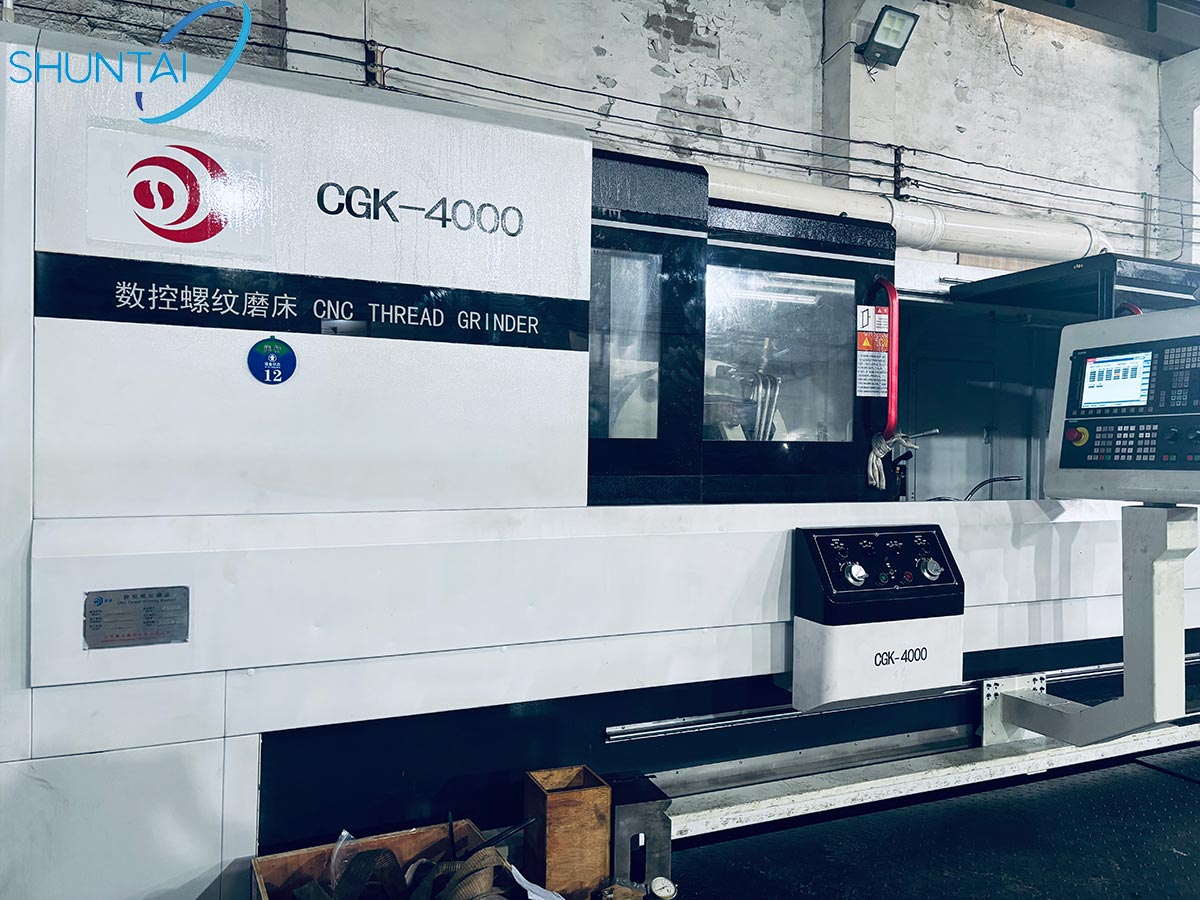

• • Strict Production Standards: Using mature processes such as rolling and grinding, we implement full-process quality control from raw materials to finished products, ensuring the precision and durability of every component.
• • Fast Delivery Response: Standard specifications are available for shipment within 7 days. Leveraging our proximity to Shanghai Port, we efficiently connect with domestic and international logistics to meet your project timelines.
• • Customization Capabilities: We provide personalized solutions for screw length, pitch, and end machining to suit the installation and operational requirements of different equipment, tailored to your specific application scenarios.
• • Long-Term Cooperation Support: Whether for university research projects, large-scale industrial equipment, or foreign trade orders, we deliver consistent quality and ongoing technical support, looking forward to establishing mutually beneficial business relationships with customers worldwide.
  Shuntai is committed to providing global customers with high-quality, cost-effective linear motion solutions and precision transmission components. Whatever your project requirements may be, we will work with you to develop the right industrial transmission solution through professional technical support, mature customization capabilities, and reliable delivery services. We look forward to partnering with you to create new possibilities for efficient and stable industrial applications.



•
